Product details

Frame
Frame

Frameset: G21
G21 Frame, Fork, Handlebar, Seatpost
Frame:
Sizes:
45cm,49cm, 52cm, 54cm, 56cm, 58cm, 60cm
Material: High Modulus Toray 800 Carbon Fiber
Color: Champagne / Custom Painting
Carbon Weave: UD
Groupset Compatible: Machine and Di2 compatible
BB: BB T-47 inboard bearing
- GRX crank: T47 BB inboard bearing for Shimano 24mm spindle size
- SRAM DUB / DUB wide crank: T47 BB inboard bearing for SRAM DUB
- SRAM GXP: T47 BB inboard bearing for SRAM GXP
BB Width: 86.5mm
Headtube: Straight 1-1/2”
Rear Dropout: 12*142 Thru Axle
Rear Derailleur: Hanger Universal Derailleur Hanger: (UDH) - Replaceable
Cable: Internal cable
Chainring: - Single: Max of 42t for normal crank spindle and 44t for wide crank spindle
Brake Fitment: Flat Mount Disc
Cable Routing: Internal
Bottle Mounts: 4
Mudguard Compatible: Yes
Cargo Rack Compatible: Yes

Fork
Fork

Fork: 1 1/8" - 1 1/2", 12*100 Thru Axle
Fork Weight: 480g

Seatpost
Seatpost

Seatpost Weight: 95.2g (without clamp)
Seatpost Shape: Round (27.2mm)

Tires
Tires

Max Tire Width: 700x53mm, 650Bx2.1” (single chainring setup)

Handlebar
Handlebar

Handlebar:
Size:
 400mm, 420mm, 440mm
Stem Size: 80mm, 90mm/100mm/110mm/120mm
Handlebar option: H21 / ST1+H25

Weight
Weight

Frame Weight:
Champagne: 1170g(56cm)Raw1050g(56cm)
Limited Rider Weight:
125KG

Included in the Box

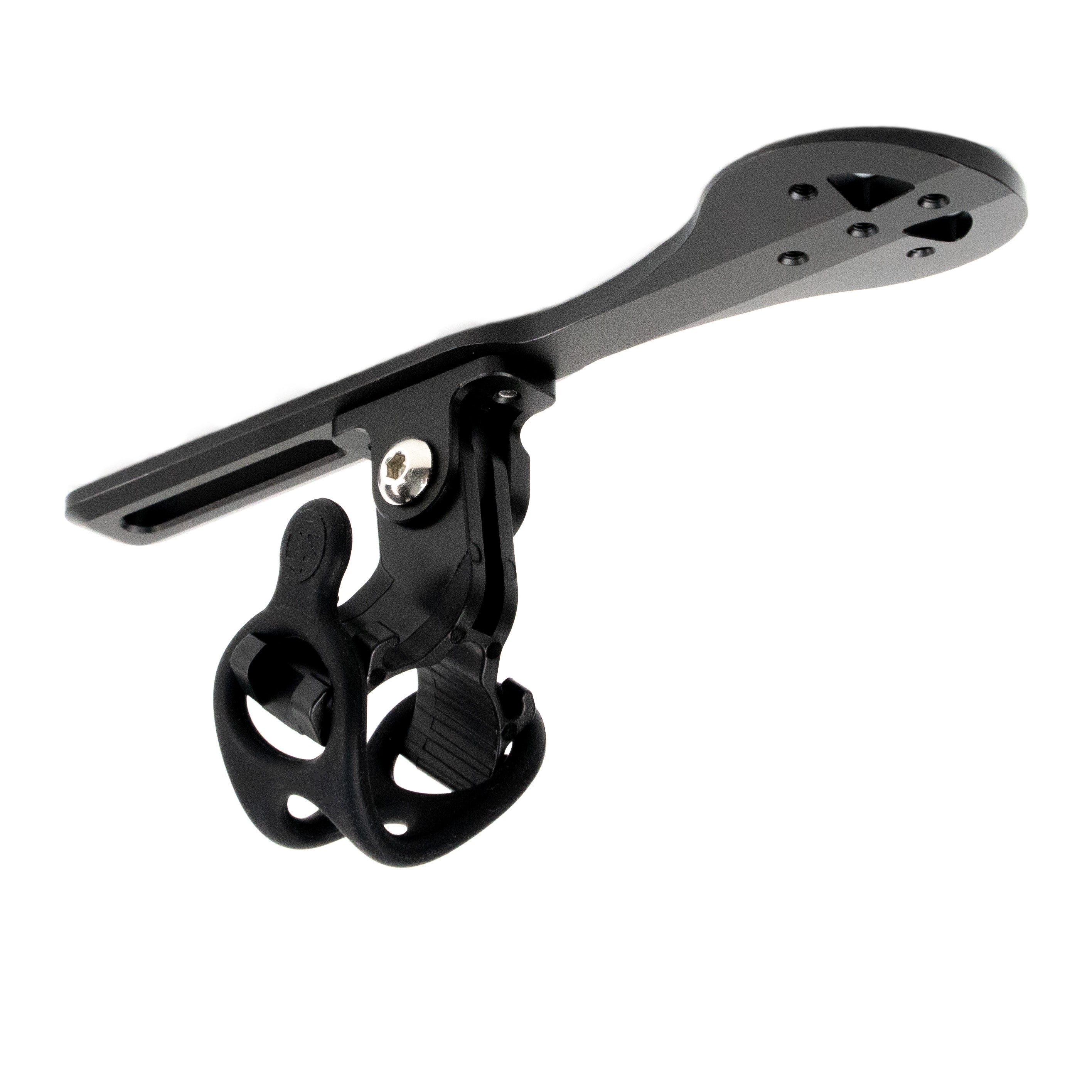

  • CH9 Computer Holder*1

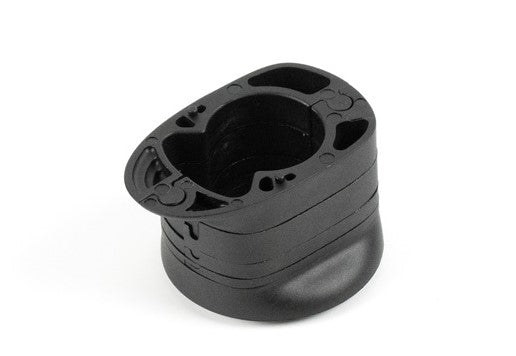

  • Handlebar Spacer*1

  • Compression Plug*1

  • 8mm Headset Bottom Bearing - YOELEO

    Headtube Bearings*2

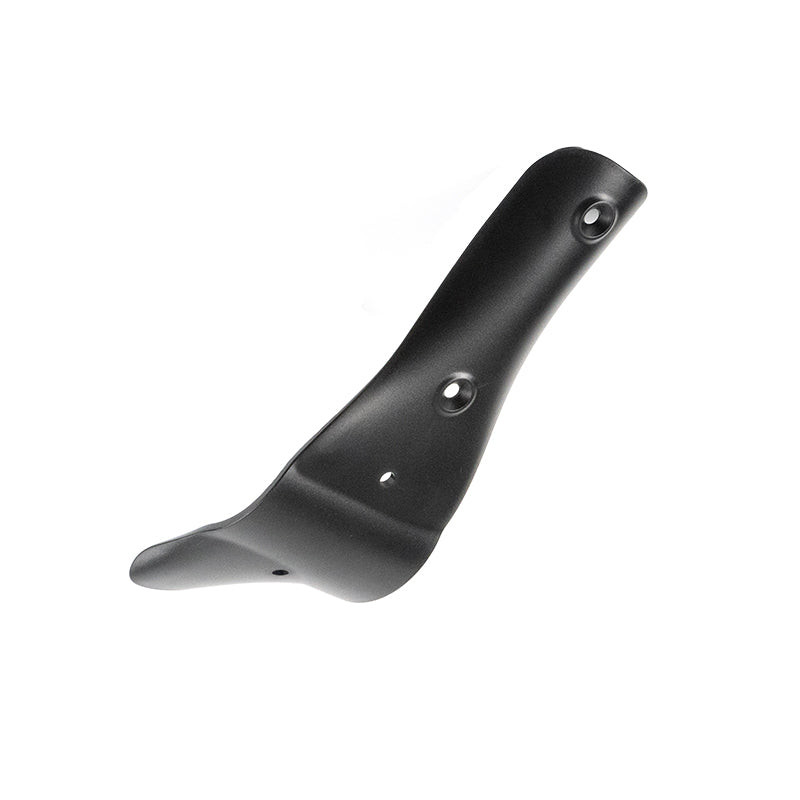

  • Downtube BB Cover*1

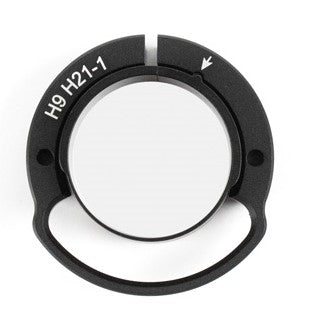

  • Compression Ring*1

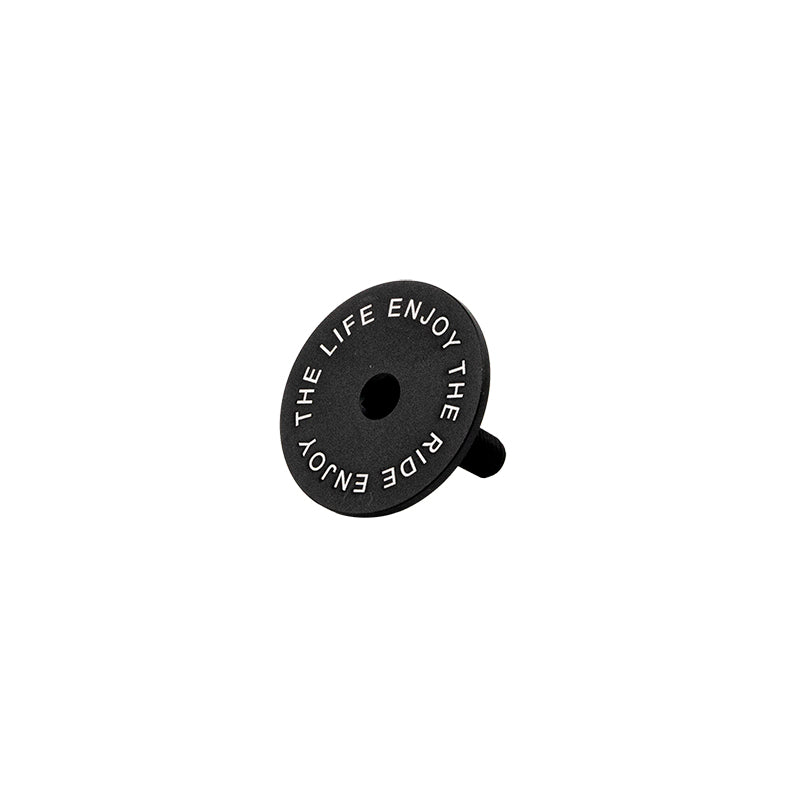

  • Compression End Cap*1

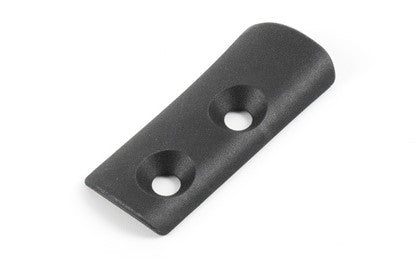

  • Front Derailleur Hanger Cover*1

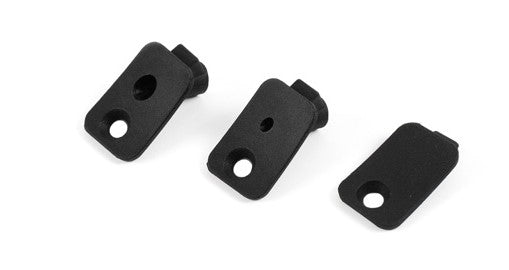

  • Front Derailleur Housing grommet*1

  • Axles Set (F+R) *1

  • Storges*2

  • Saddle Clamp Set*1

  • Seatpost Clamp*1

  • Cable Spong*2

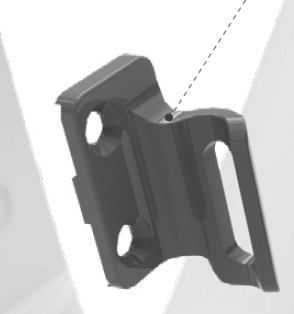

  • Hanger*1

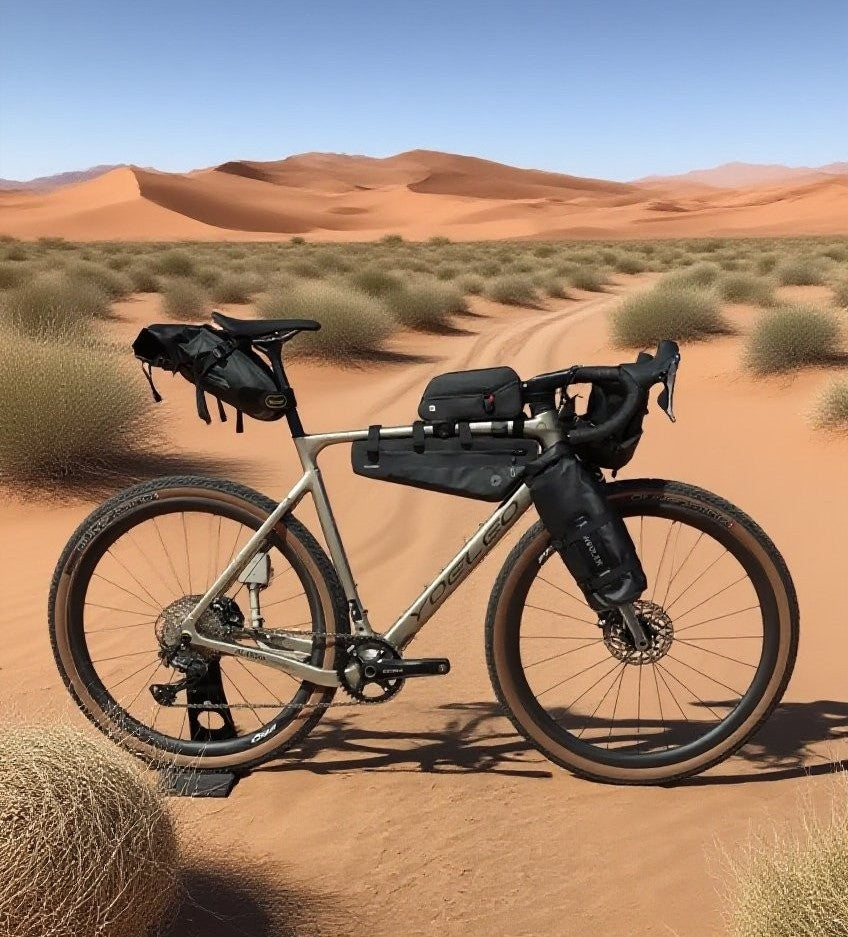

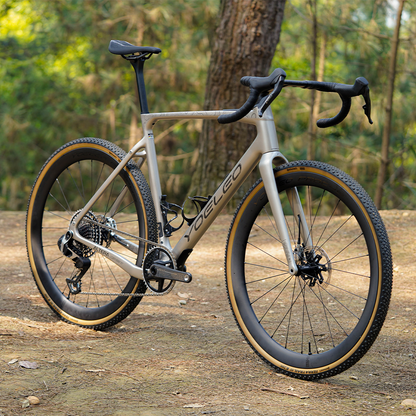

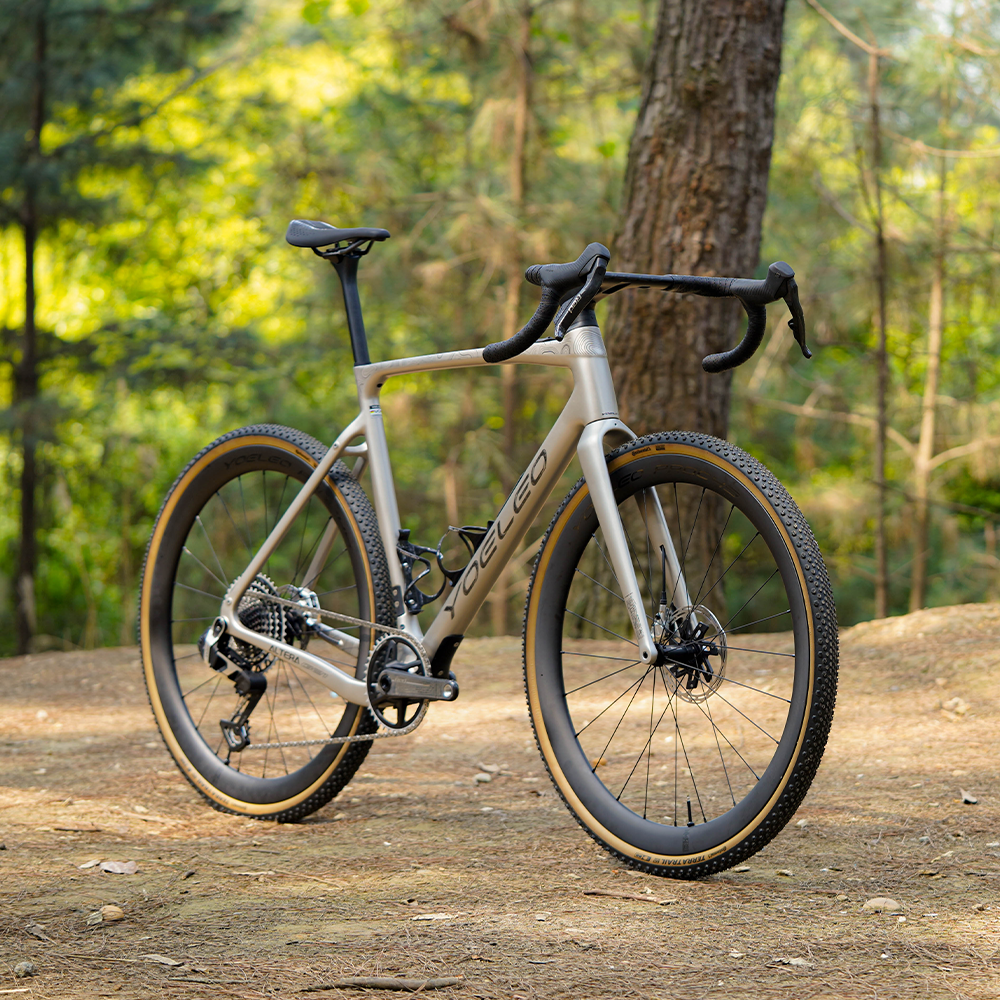

G21 Altera, the best gravel with endless capabilities

More storage, more flexible, more comfort, more control and more of everyhing. If G21 has the answer to your questions, the Alterra G21 has the answer and more.

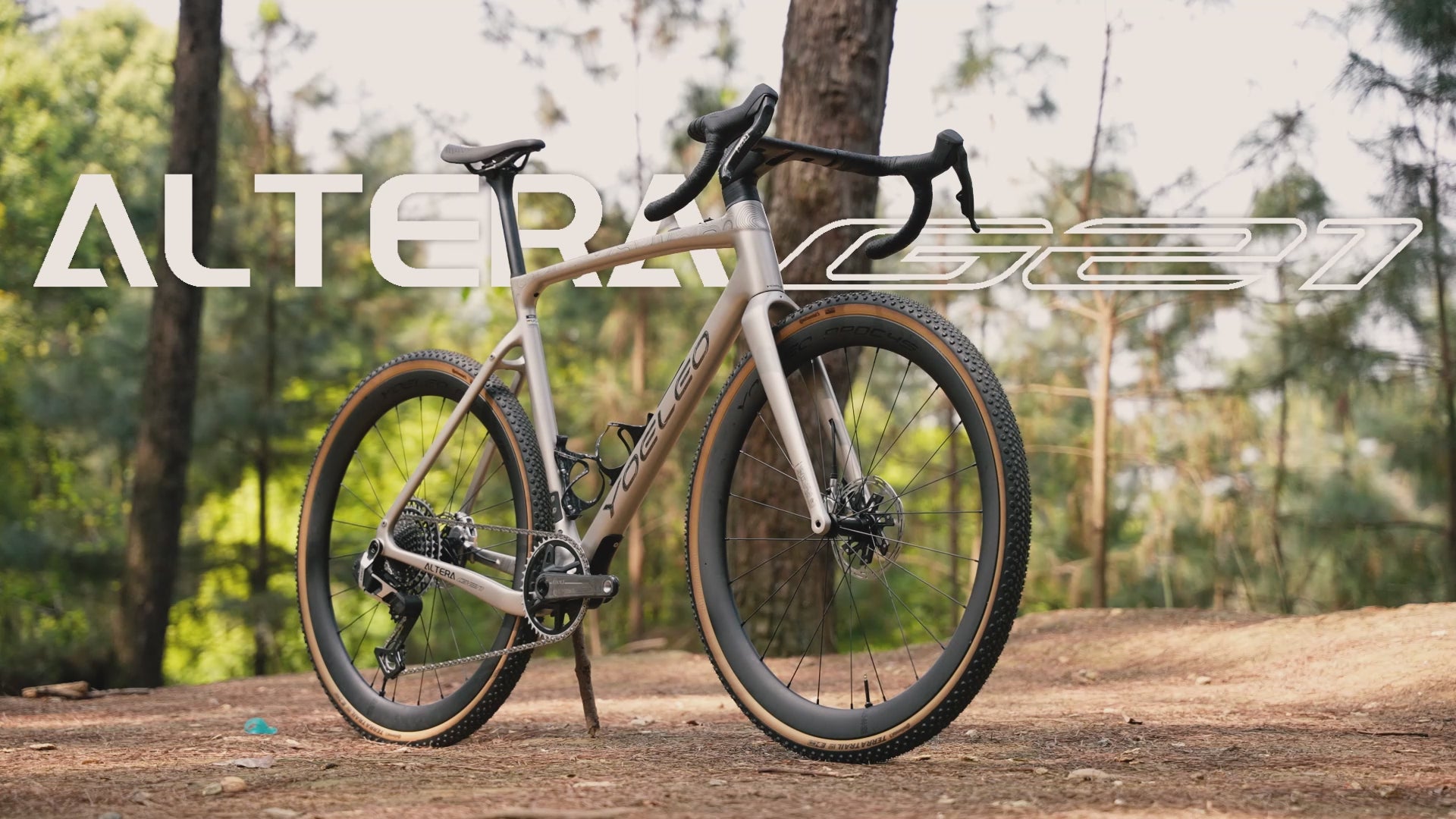

Altera G21

Load video:

Refined Gravel-Optimized Geometry

Slacker headtube angle, longer wheelbase, and a shorter stem come together for better stability and control on rough terrain—without the worry of toe overlap.

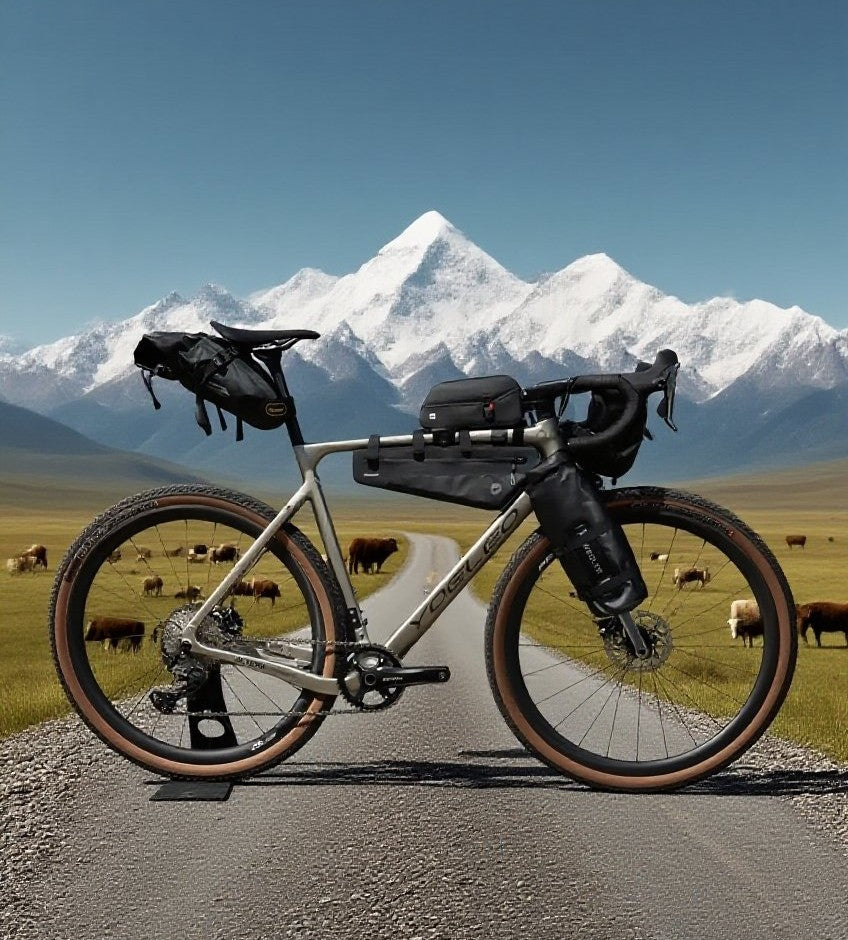

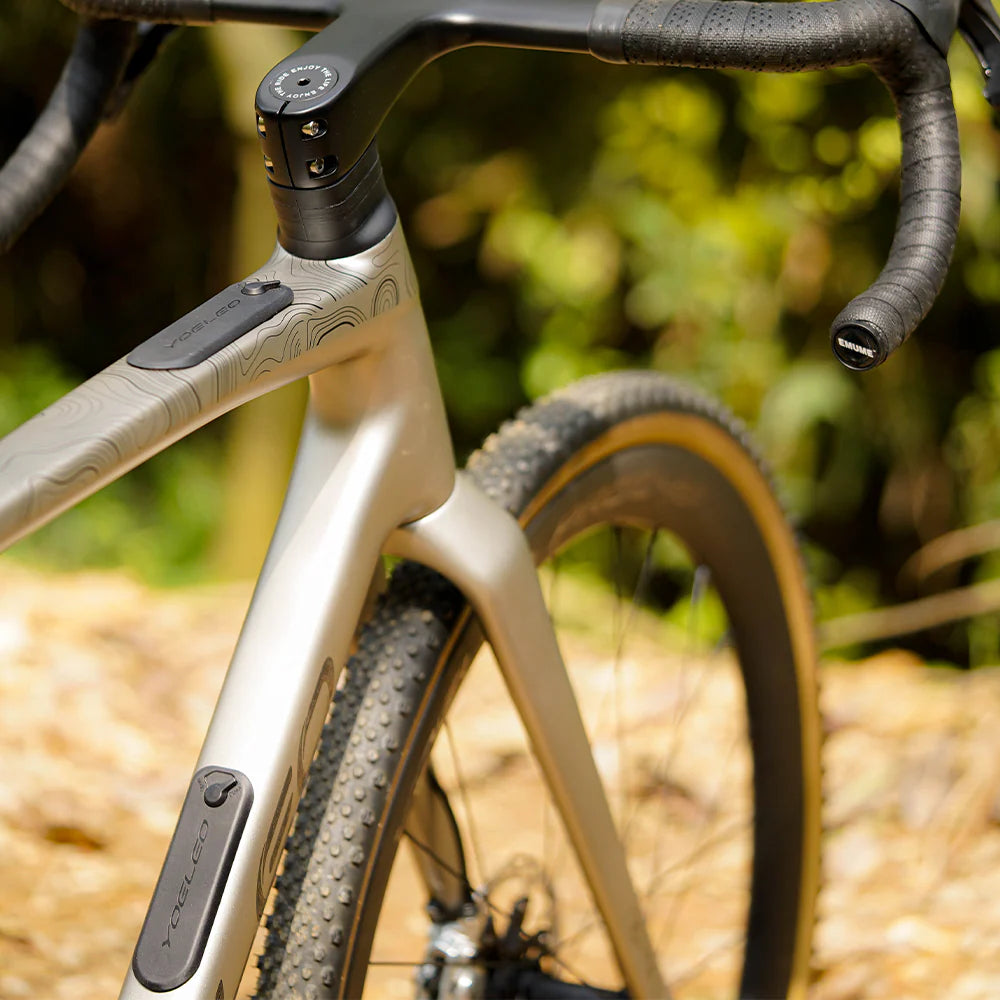

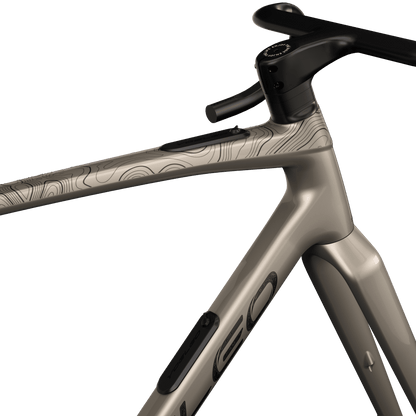

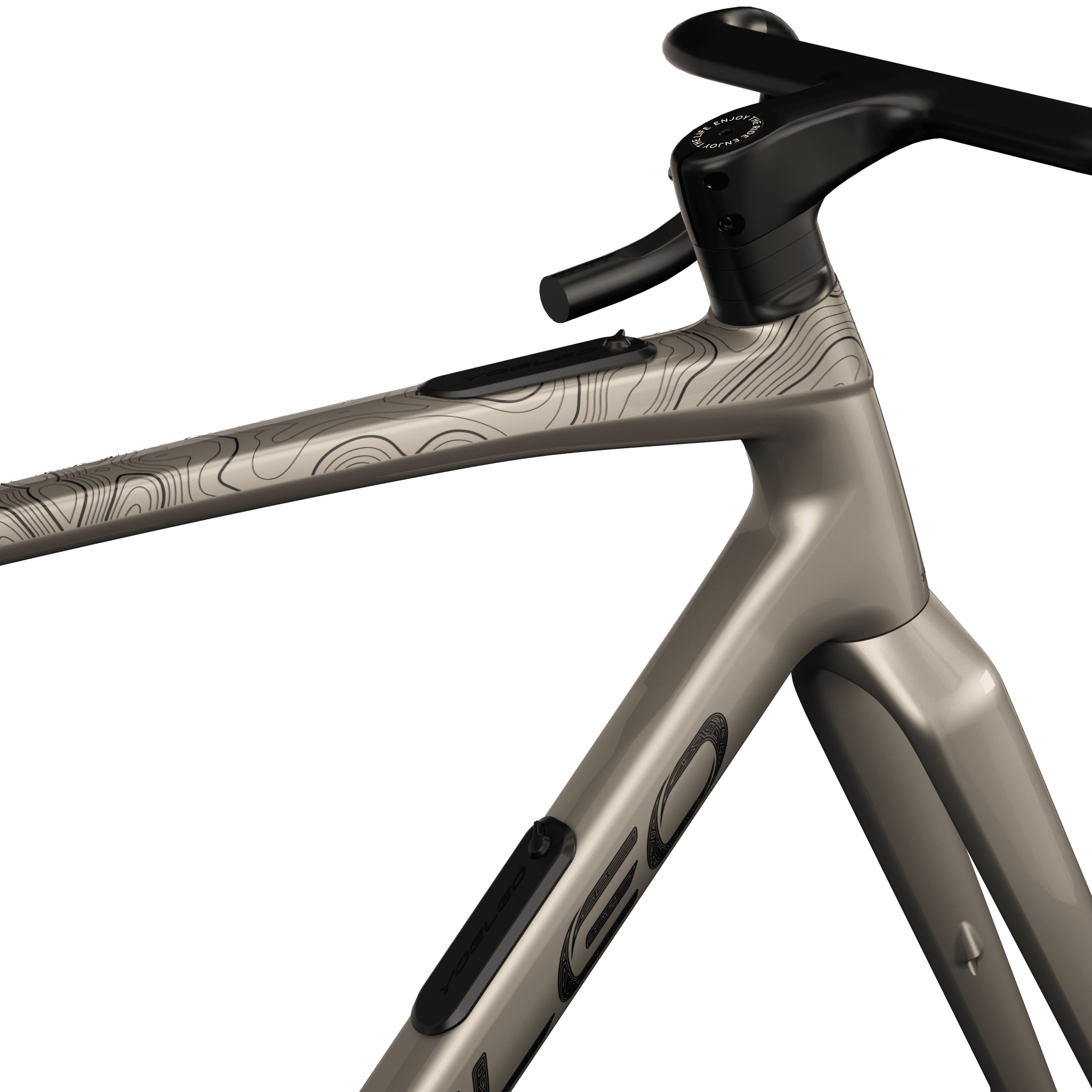

Integrated Storage Solutions

Internal storage compartments on the top tube and down tube (with a built-in bag) let you pack more gear for extended rides or simply stash a day’s worth of essentials directly in your frame.

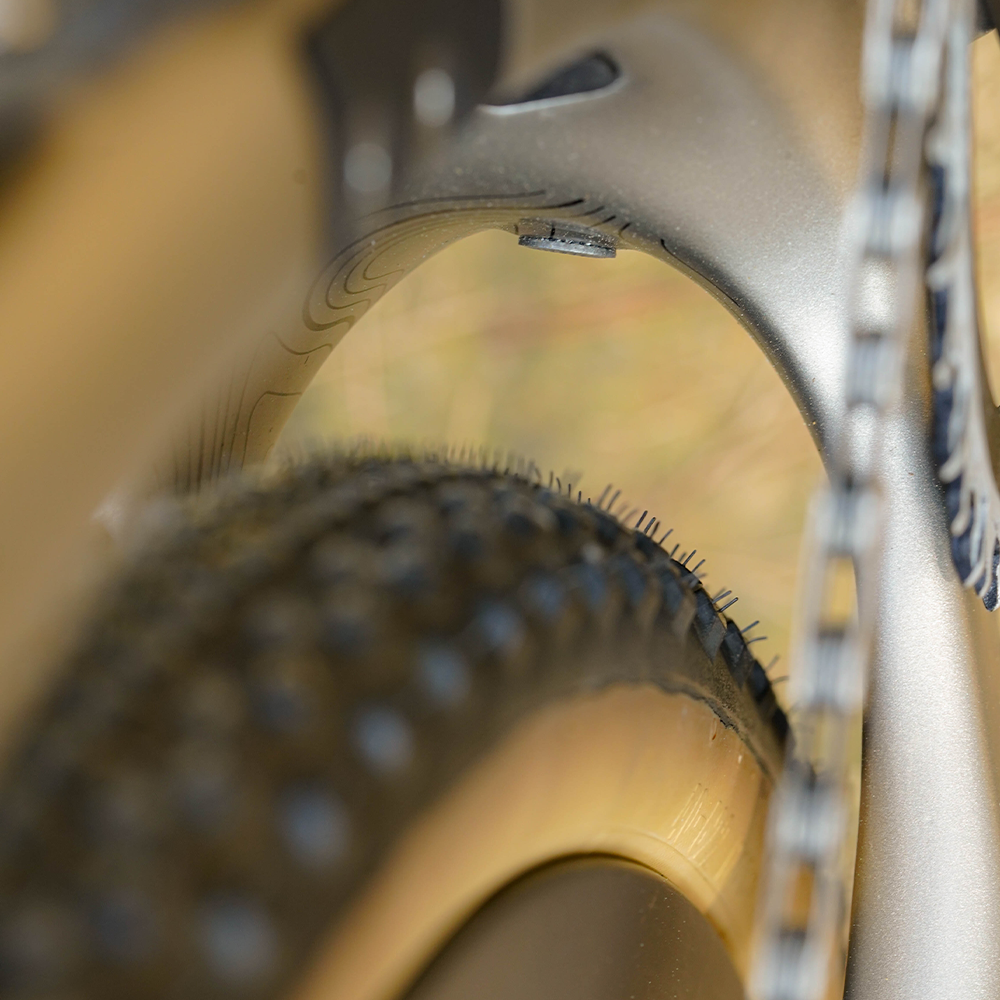

Generous Tire Clearance

Supports up to 700x53mm or 650Bx2.1” tires (single chainring). From fast gravel to rugged trails, Altera adapts to the ride you want.

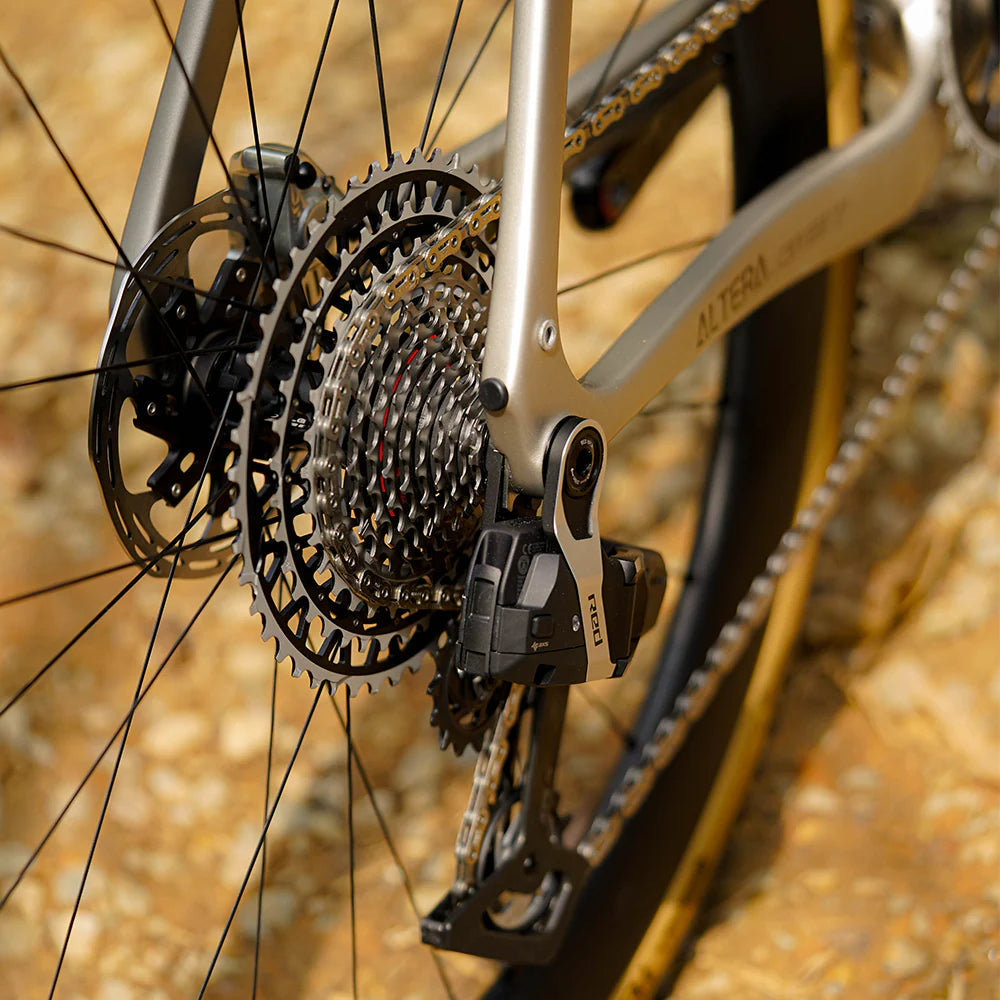

UDH Compatibility & Optimization

The Universal Derailleur Hanger (UDH) adds an extra layer of security and flexibility. Ride confidently knowing your derailleur and frame are protected, and choose any groupset you prefer with UDH’s universal fit.

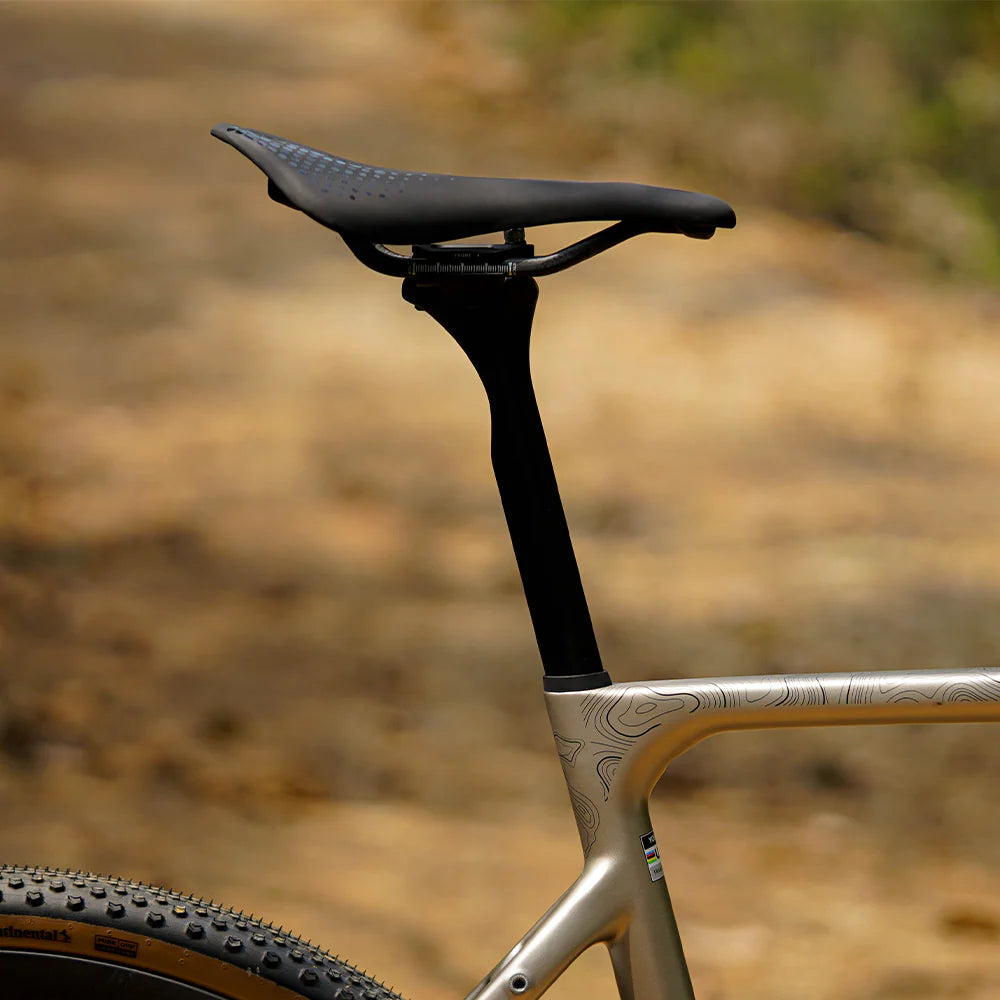

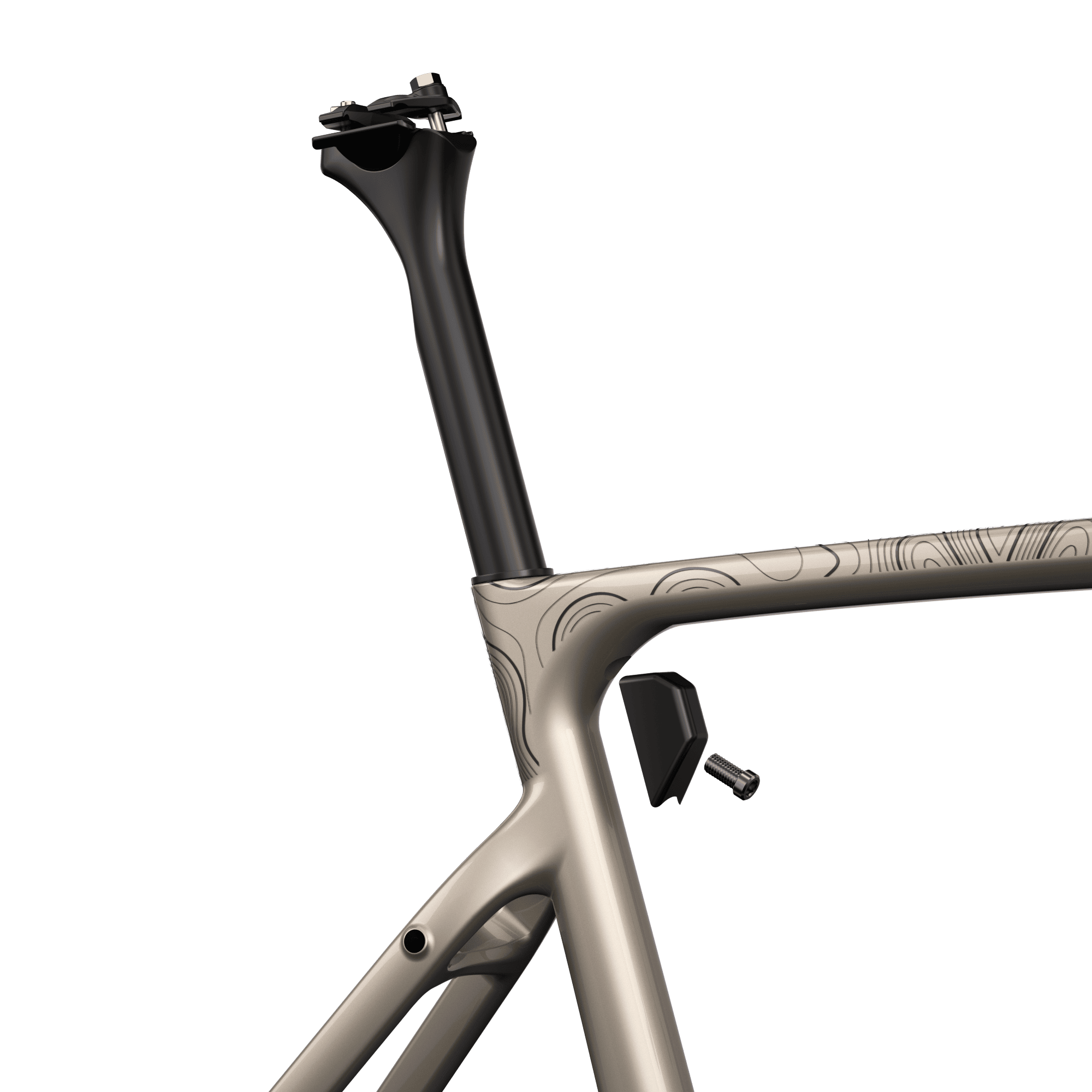

Introducing the YOELEO Pro-Flex Seatpost

Now featuring a 27.2mm round profile, the Pro-Flex Seatpost quickly absorbs road buzz for improved comfort. The round design also makes it easy to switch to a third-party seatpost if desired—or even upgrade to a dropper seatpost. This change from the previous D-shaped configuration opens up more possibilities for every rider.

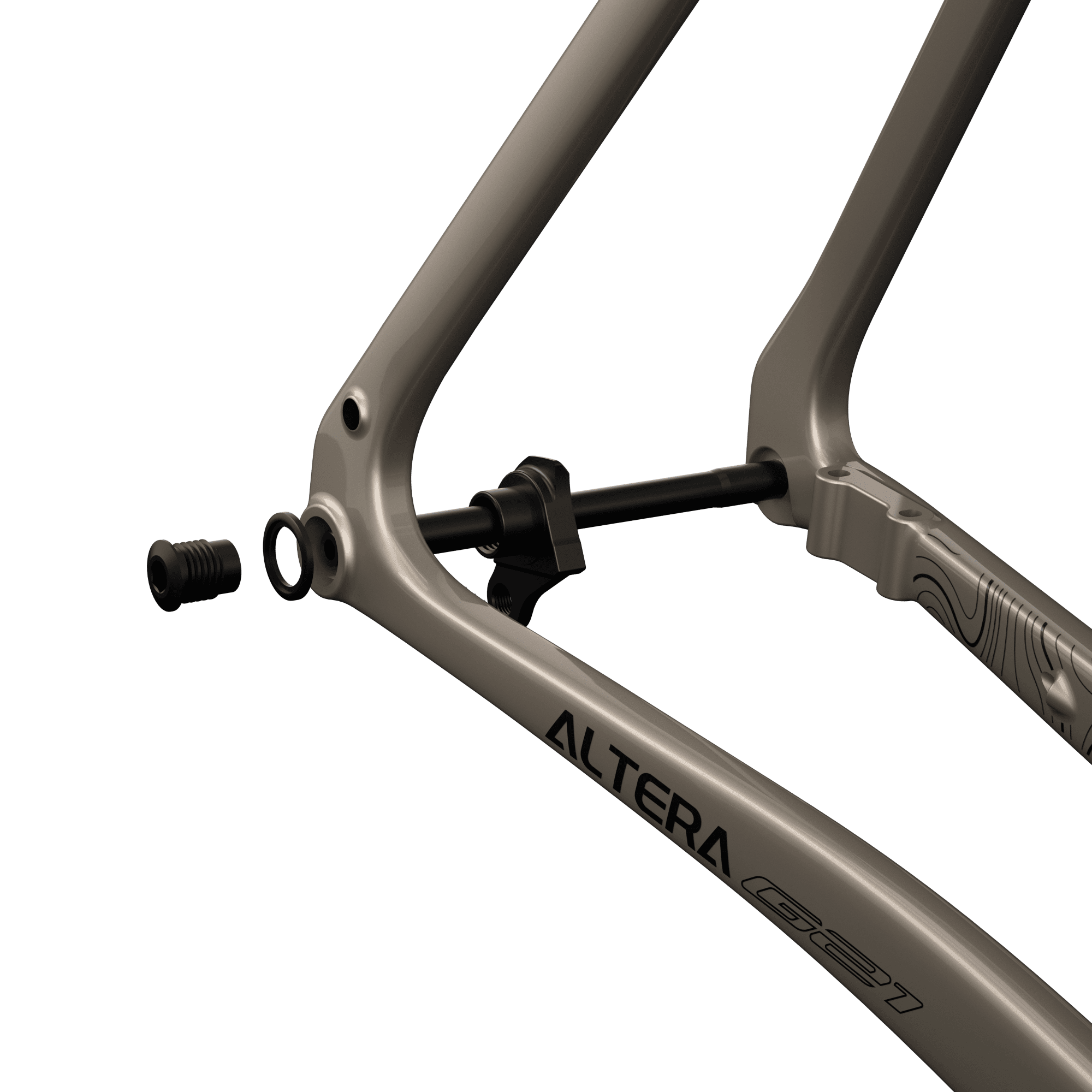

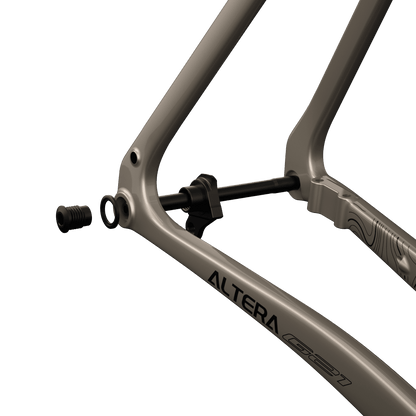

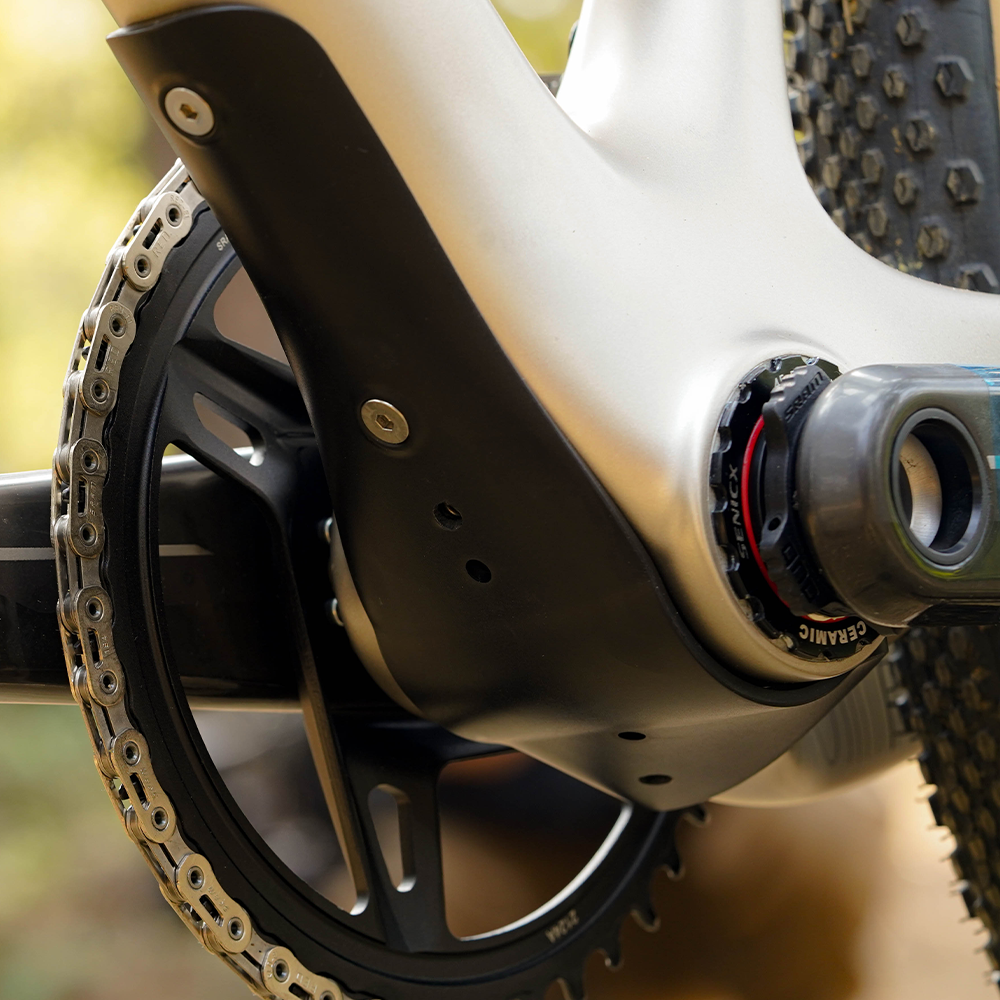

Re-Engineered BB Shell

A threaded bottom bracket made from bonded aluminum is now molded into the frame—offering perfect alignment, improved durability, and a lighter overall build for a smoother ride experience.

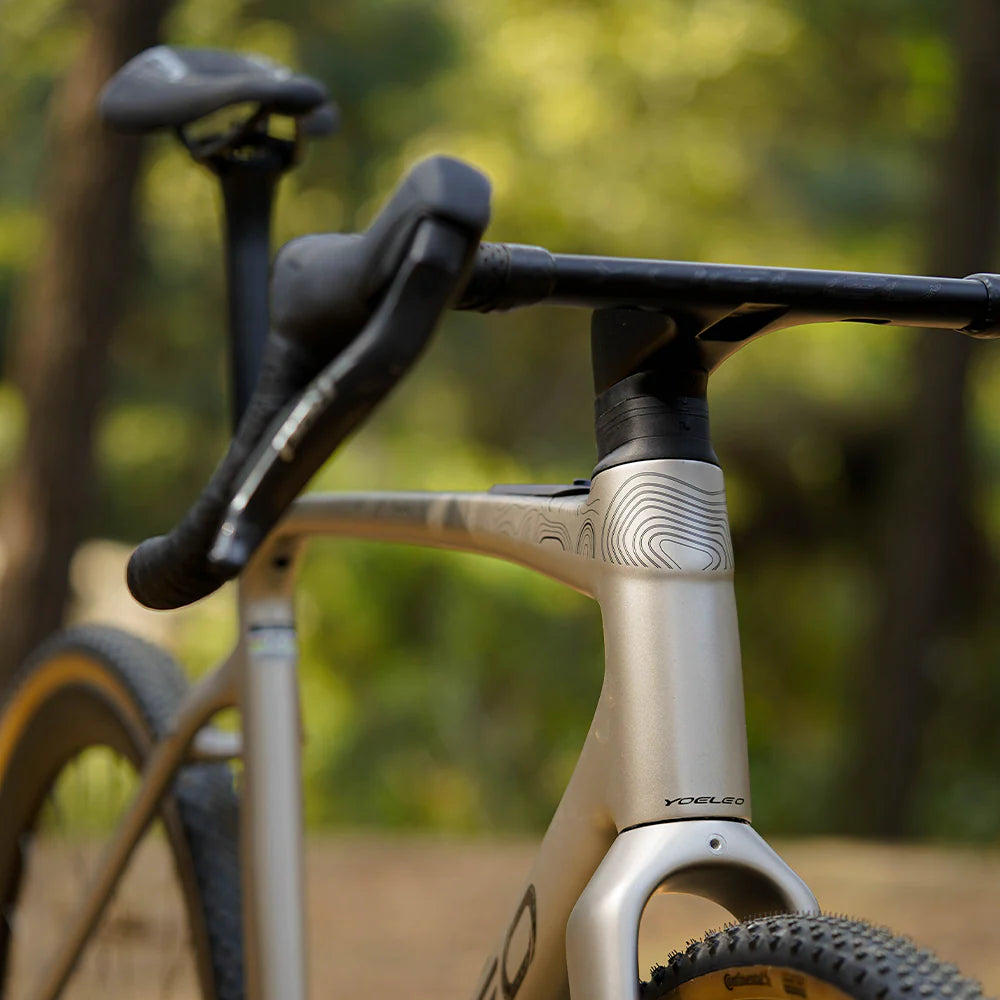

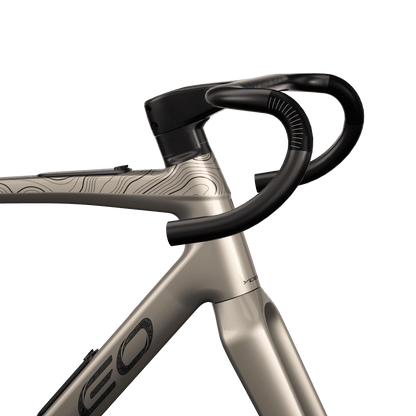

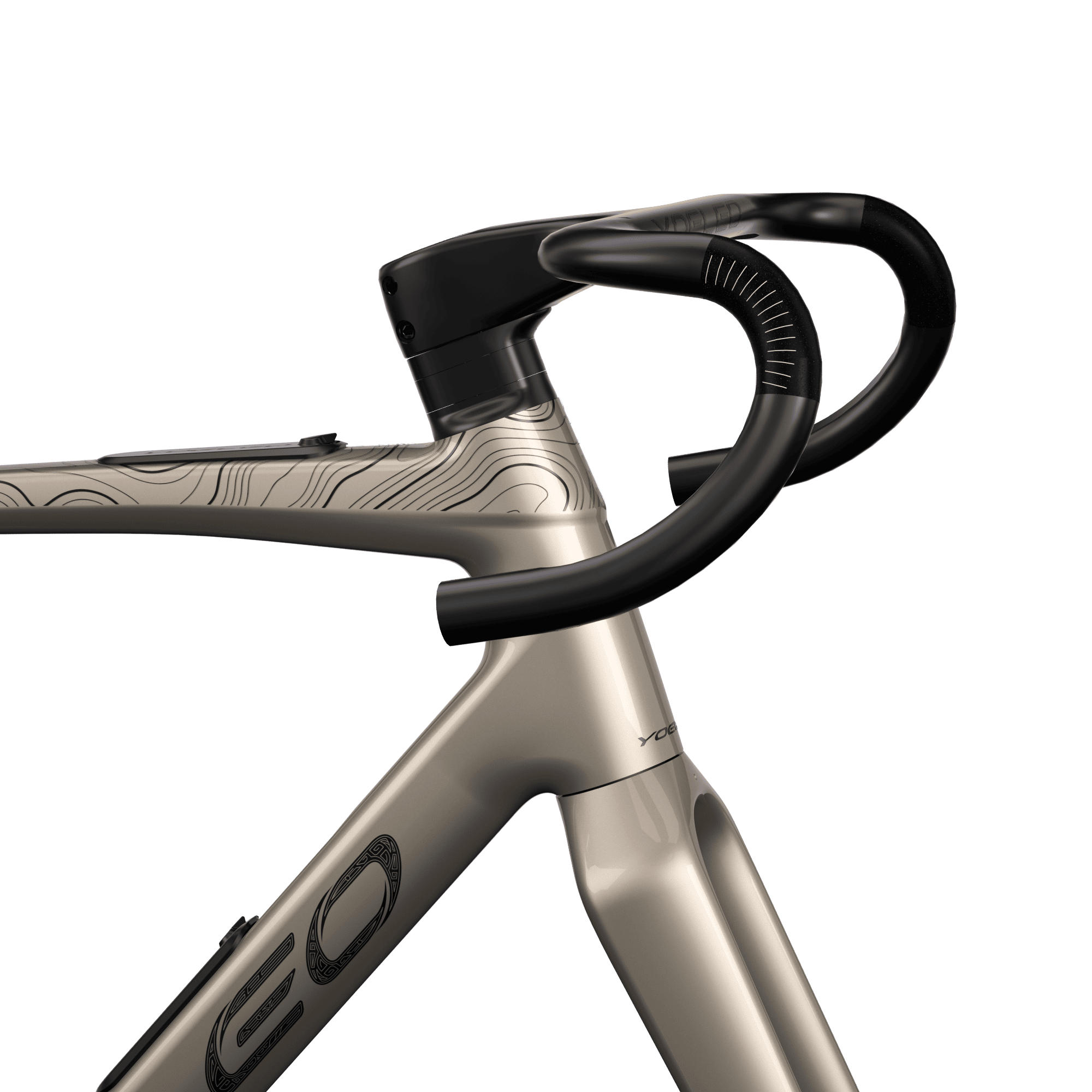

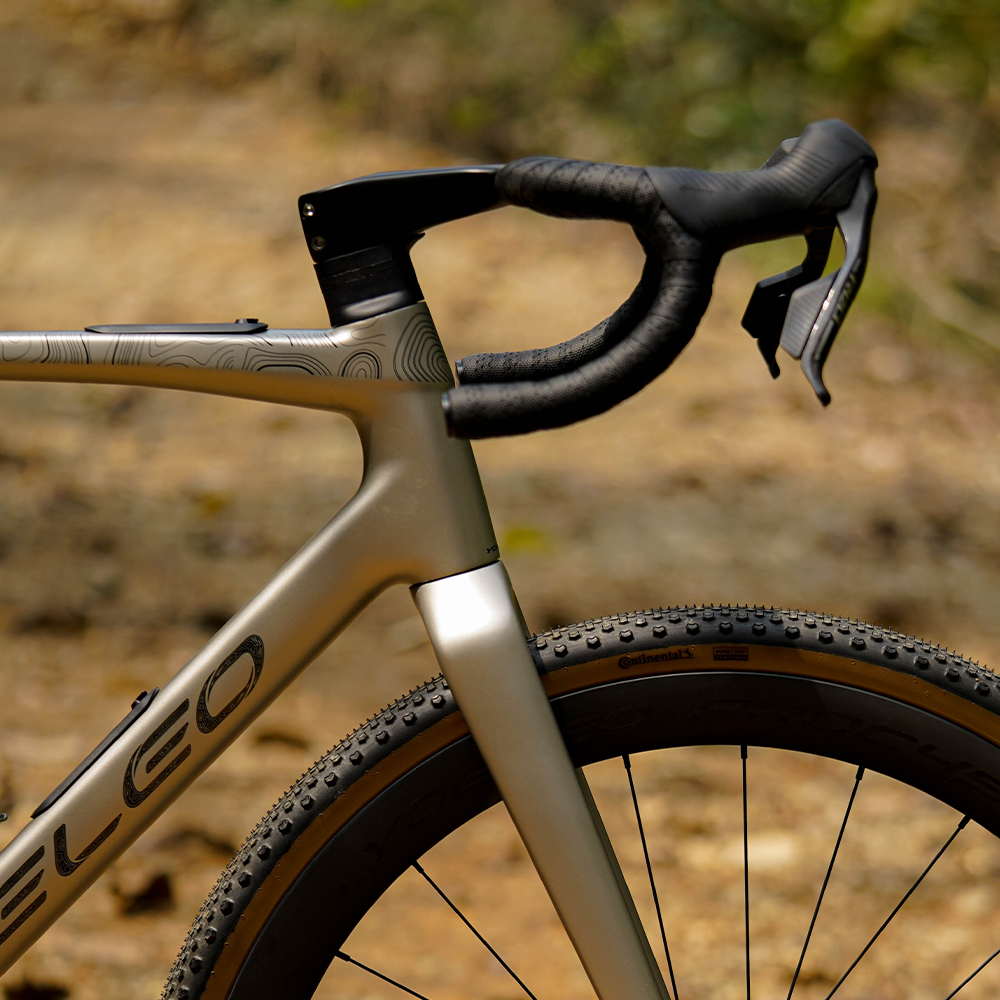

Flared Cockpit System

With a 15.2° flare and widths from 400 to 440mm, H21 CARBON INTEGRATED HANDLEBAR offers better control and all day comfort. Perfect for gravel, adventure, and aggressive terrain.

Load video:

ProMoldCore Technology

The conventional manufacturing method that is still common practice with most companies today brings a lot of issues. Conventional methods causes undulations on the internals of the frame and even increases weight, making it difficult to achieve performance according to the specified carbon sheet specifications.Unlike traditional methods such as nylon bladders, ProMoldCore manufacturing technology allows for a more stable molding of the inside of the frame thanks to latex's flexibility and stretchability.We believe that inside out beauty applies for everything, especially for our framesets. By utilizing ProMoldCore technology, the outside and inside of a carbon road frame are of the same quality, resulting in an inner surface that is as smooth and wrinkle-free as the outer surface.The use of latex increases the pressure of the molded latex bag, smoothing the internal finish, improving the compressibility of the compound, reducing resin waste, and allowing for more complex shapes to be made.

Load video:

ProMoldCore and ProOne Technology

CRAFTED WITH PROMOLDCORE

In the same vein, the implementation of ProMoldCore in fabricating our handlebars has earned them renown for their stiffness. Experience hassle-free cable installation as the latex molds the bar's interior, ensuring a seamless cable routing installation with a sleek, smooth finish inside out.
ProOne Technology:
One-piece, no-bond manufacturing utilizes high-grade carbon fiber and YOELEO precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.

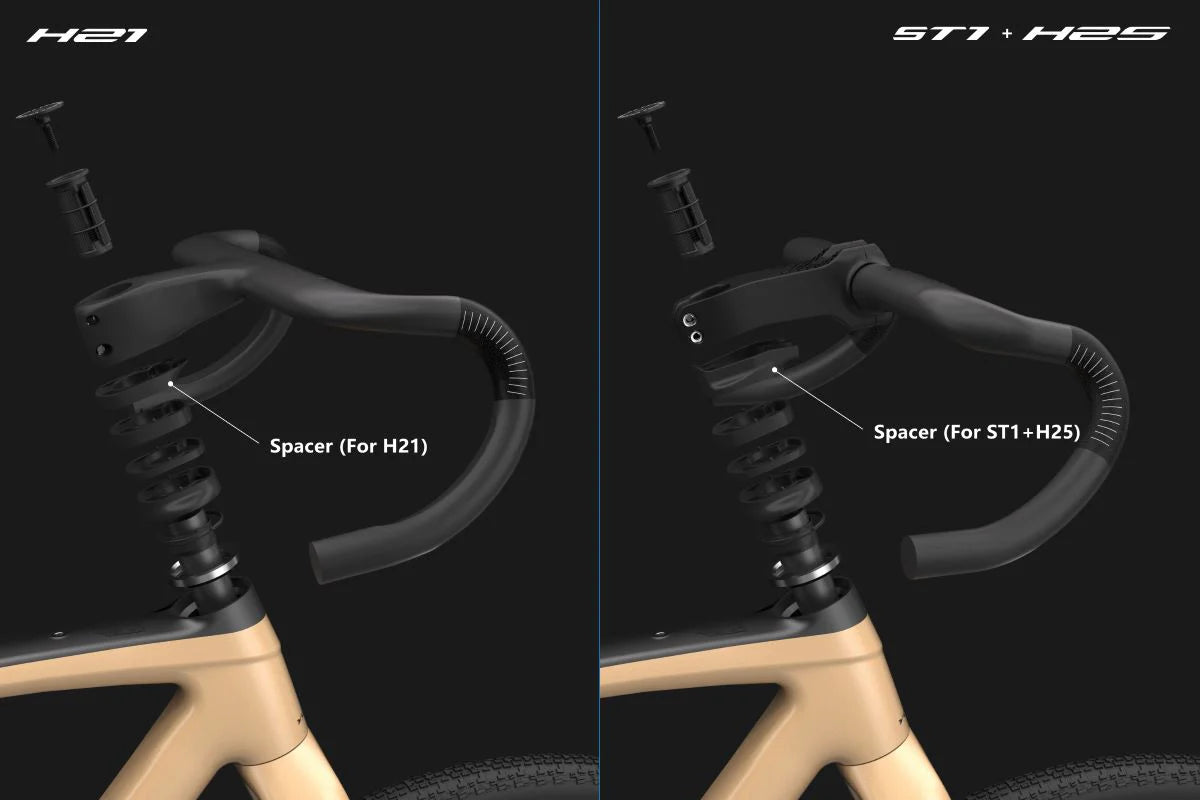

Integrated or Stem & Bar Combo

Ride with H21, easy to install and hassle-free integrated handlebar, or with H25 and ST1, easy to adjust bar and stem combination that allows for freedom.

Handlebar Options

H21 CARBON INTEGRATED HANDLEBAR - YOELEO

H21 Integrated

H9 CARBON ROAD BIKE INTEGRATED HANDLEBAR (VERSION 2) - YOELEO

H9 Intergrated

H25 + ST1 CARBON HANDLEBAR - YOELEO

ST1+H25

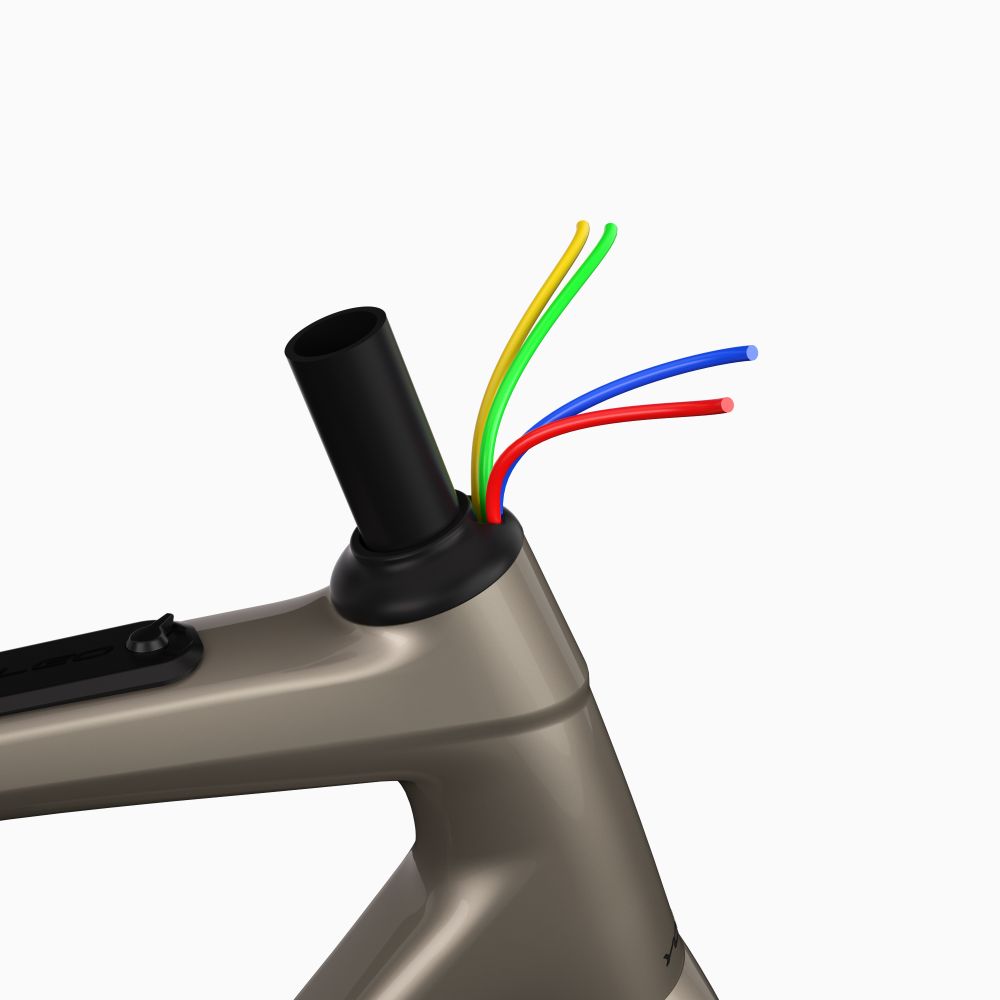

Without Handlebar

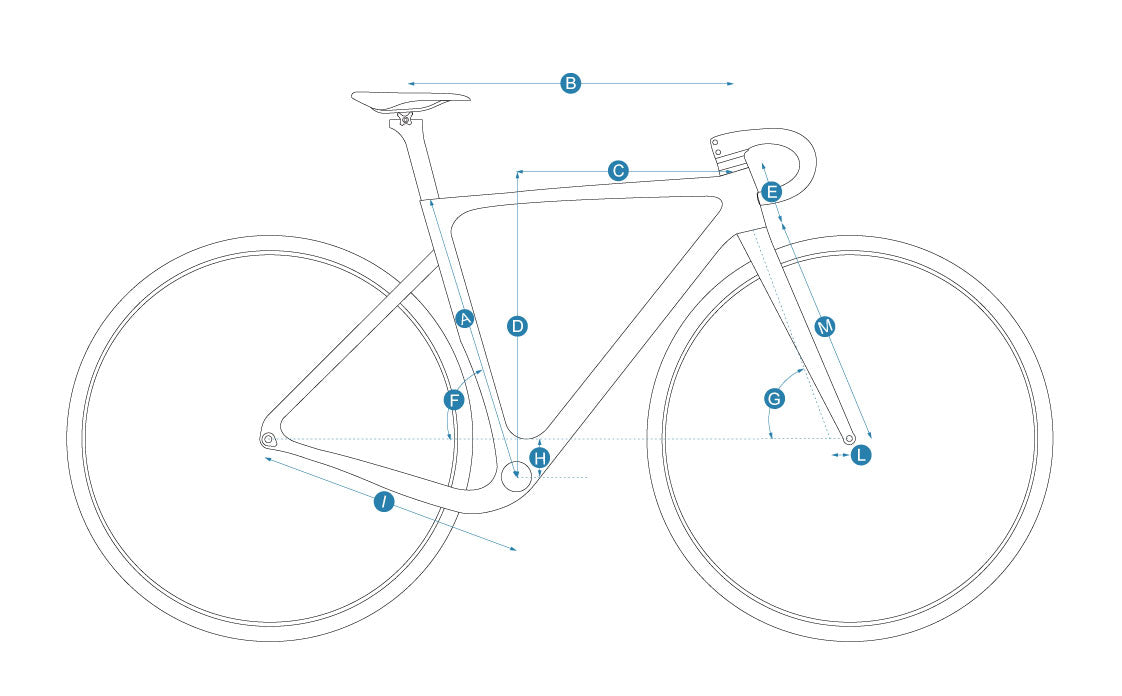

Geometry



45
49
52
54
56
58
60
Size Recommendation
Rider Height
160cm-168cm
165cm-175cm
172cm-180cm
177cm-185cm
182cm-190cm
187cm-196cm
193cm-201cm
A
SEAT TUBE LENGTH(mm)
450
490
520
540
560
580
610
B
TOP TUBE LENGTH(mm)
510
515
536.4
551
566
577
592
C
REACH(mm)
373
373
379
383
387
390
396
D
STACK(mm)
512
531
549
566
586
611
640
E
HEAD TUBE LENGTH(mm)
79
98.5
107
134
145
171
200
F
SEAT TUBE ANGLE
75°
75.0°
74.0°
73.5°
73°
73.0°
73.0°
G
HEAD TUBE ANGLE
69°
69.5°
70°
70°
71°
71°
71°
H
BOTTOM BRACKET DROP(mm)
79
79
79
79
79
79
79
I
CHAIN STAY LENGTH(mm)
433
433
433
433
433
433
433
L
FORK RAKE(mm)
47
47
47
47
47
47
47
M
FORK LENGTH(mm)
401.5
401.5
401.5
401.5
401.5
401.5
401.5
